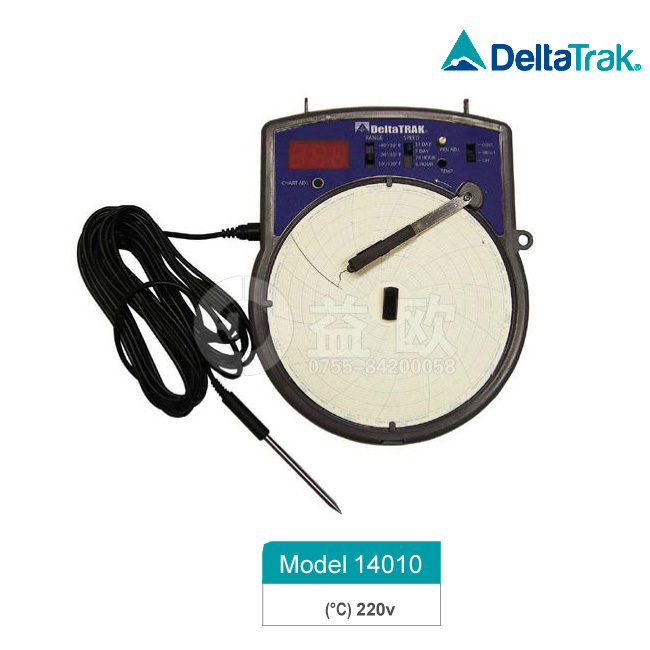

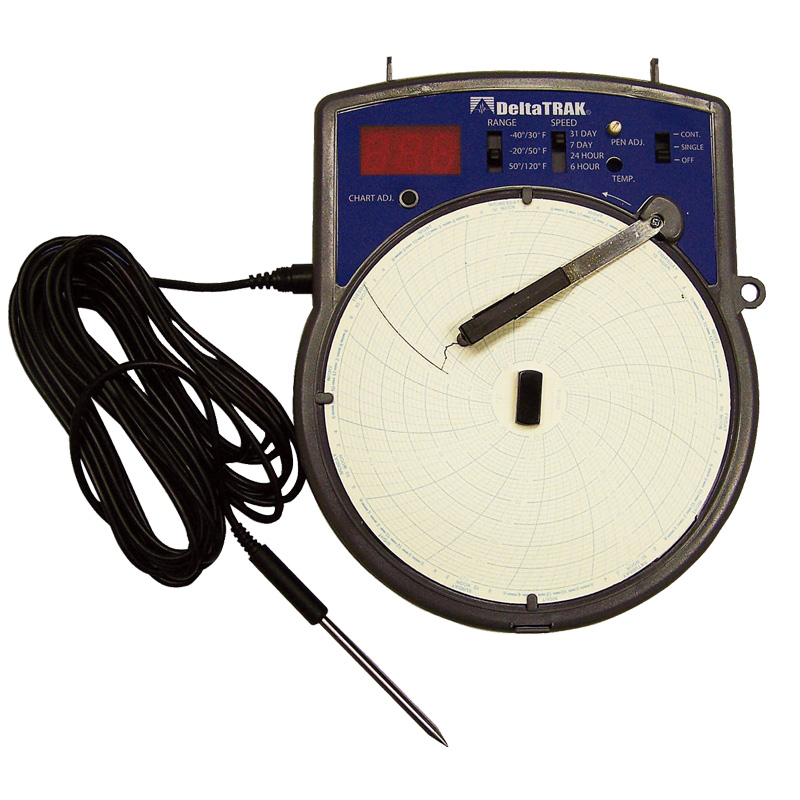

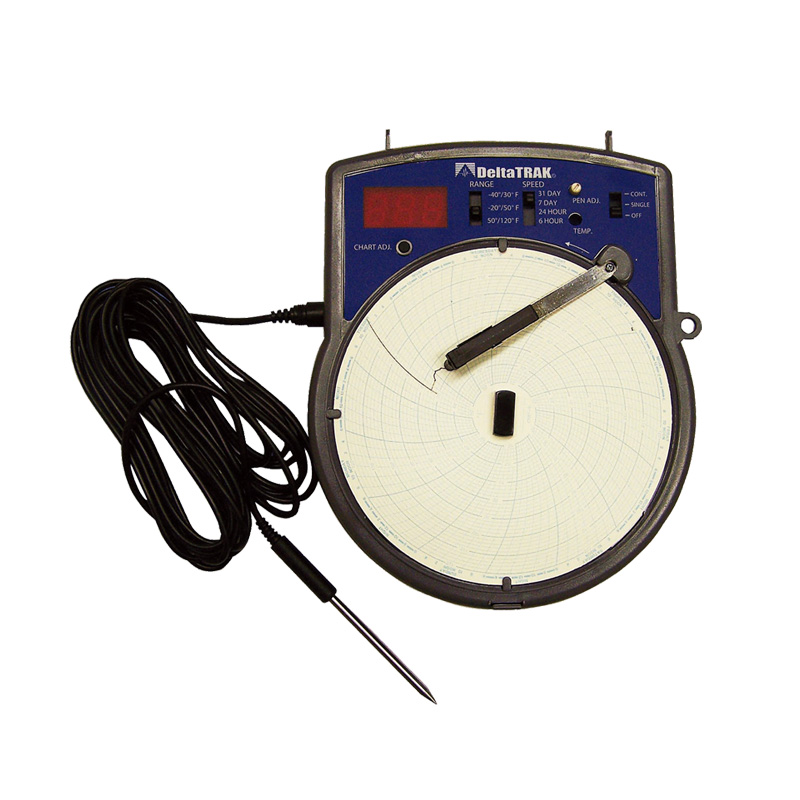

DeltaTrak-disc paper transfer record-14010
$509.00
• Select single or continuous chart rotation
• Stainless steel probe allows you to measure the temperature of
air, gas, liquids, powders, and semi-solids
• Back-up batteries allow continuous function (up to 48 hrs) during
power failures
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Temperature range: -40 ° C~ -0 ° C; -30 ° C~ 10 ° C, 10 ° C~ 50 ° C Three ranges can be switched by themselves; 220V power supply Function: Current temperature LED display, can Draw the temperature curve and replace the recording paper.Temperature accuracy: +/- 2 ° F (+/- 1 ° C)
Four paper speeds: 6 hours, 24 hours, 7 days and
31 days.
Three temperature ranges are: -40 ℃ /-1 ℃, -30 ℃ /10 ° C
And 10 ℃ /49 ℃. Used for freezing, refrigeration and room temperature air respectively
Environment.
External stainless steel probes are used to measure air, gases, and liquids
And semi-solid temperatures.
Features a quartz clock movement, electric chart propulsion, and a ± 1 ° C
Temperature precision.
Can be connected to 120V or 220V AC/50/60 Hz. ° F or ° C
Double temperature mode.
Equipped with 8 AA alkaline batteries, it can provide 48 after temporary power failure.
Hours of continuous recording.
The current temperature is displayed on an easy-to-read LED screen.
Permanently tracked records are provided by charts on paper.
The charts and record pens are easy to replace.
DeltaTrak-14010-datasheet.pdf
Additional information
| Brand | DeltaTrak |
|---|---|
| Model | 14010 |
| Temperature Range Selectable | -40°F to 30°F / -20°F to |
| Chart Speed Selectable | 6 hours, 24 hours, 7 |
| Chart Speed Accuracy | ±1% |
| Chart Diameter | 6 inches (152.4mm) |
| Temperature Display | 3 digit LED 0.5 inches |
| Temperature Accuracy | ±2°F (±1°C) |
| Temperature Sensor | Stainless steel probe 2 |
| Recording Pen | Ink type |
| Power Supply | 120 VAC, 50/60 Hz., |
| Battery Backup | Holder for 8 alkaline |
| Battery Life | 48 hours |
| Operating Temperature | 32°F to 120°F (0°C to |
| Relative Humidity | 96% maximum |
| Dimensions | 9 in x 6.875 in x 2.33 |
| Weight | 1 lbs 12 oz. (0.7 kg.) |
