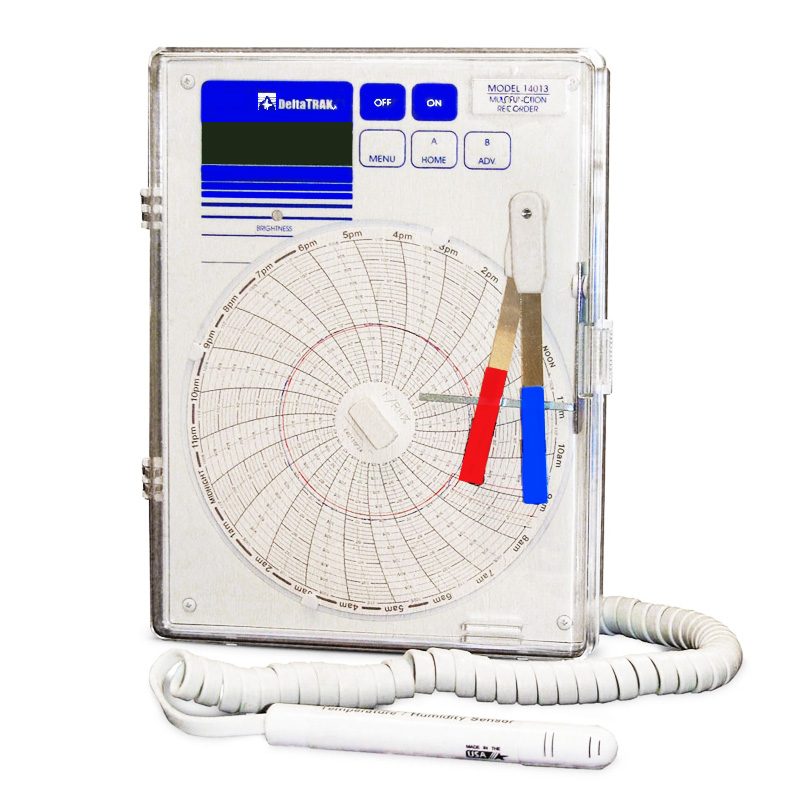

DeltaTrak.Chart recorder Temperature/humidity/dew point sensors-14014
$723.00
12,24 hours/7,31 days-30 ℃~ 10 ℃, -30 ℃~ 50 ℃, 5 ℃~ 45 ℃,10~ 90% RH, replaceable recording paper Temperature accuracy: +/- 2 ° F (+/- 1 ° C);Humidity accuracy +/- 3% (20% -80%) @77.0 ° F(25 ° C)
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Provides simultaneous monitoring of temperature and relative humidity. Dew point can also be calculated
Measurement data is permanently recorded in a circle with a diameter of 165 mm
On the drawing. External power supply can be used with any 12V DC power supply,
Such as in cars, ships, or other batteries.
Applications include refrigeration facilities, greenhouses, animal production and living
Facilities, processing rooms and laboratories.
■ Easy-to-read LCD display, full display of temperature and humidity Temperature Out of Range Alarm Features
■ Full-function alarm
■48-Hour power failure backup battery
DeltaTrak.14014-datasheet.pdf
Additional information
| Brand | DeltaTrak |
|---|---|
| Model | 14014 |
| operating ambient temperature range | 0 to +50°C |
| storage temperature | -18°C to +50°C |
| main power supply | Model14013:115VAC, 50/60Hz. Plug-in adapter, model 14014:220 – 240VAC,50Hz |
| Optional backup power supply | 8AAalkaline batteries (approximately48hours) |
| temperature accuracy | +/- 1°C |
| relative humidity range | 10-90% |
| the precision of relative humidity | +/- 3%, 20% to 80% @ 25°C |
| dew point margin | 0°C to +50°C |
| sensor | Temperature/humidity with6-foot extension cable |
| picture | 6-inch circular chart |
| Figure Rotation Speed | 31days, 7days, 24hours, 12hours, 6hours, 3hours or 1.5hours |
| Figure Rotation pattern | User selection-single turn or continuous |
| Figure Speed Accuracy | +/- 1 % |
| show | alphanumeric backlit LCD display,16characters,2lines |
| Temperature alarm range | -30°C to +50°C |
| Alarm delay range | User selectable: no delay, 10 minutes,30minutes,1hour… Ortwohours. |
| Remote alarm connection | Usually 48VAC/DC,0.1amp., dry contact |
| install | Vertical or horizontal; free-standing or wall-mounted |
| size | 9.25 inches x 7.25 inches x 2.75inches |
| weight | 2.5pounds |
| power dissipation | 3.5W |
