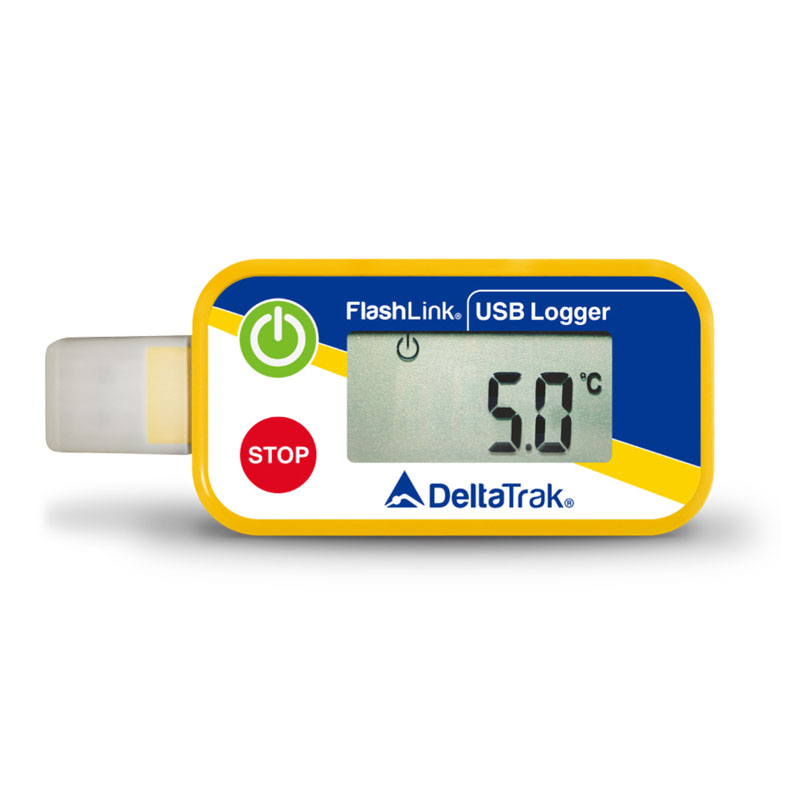

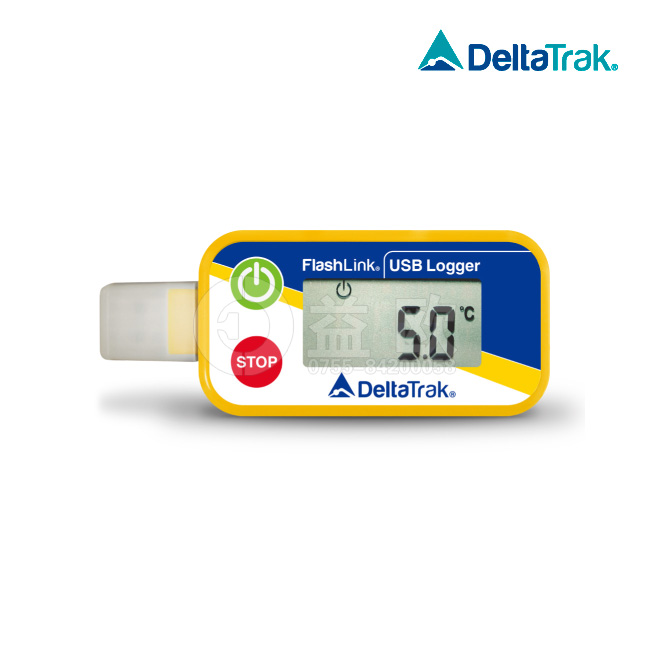

datasheet-FlashLink ® USB -80 ° C Transport Dry Ice Data Logger Model 40926 – 40930
$42.00
40926 5 day, -80°C ~48°C
40927 15 day, -80°C ~48°C
40929 45 day, -80°C ~48°C
40930 75 day, -80°C ~48°C
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
DeltaTrak’s Flash Link ® USB – 80 ° C Transport Data Logger is the ideal cold chain management tool for dry ice freezing temperature needs, supplied by
Chain monitors temperature-sensitive, perishable goods at low temperatures. This single-use data logger comes with a USB connection for easy data download
To PC and provides temperature history information from -80 ° C (-112 ° F) to 47 ° C (117 ° F). The data logger has a recording time of 5, 15, 45 or 75 days
Model. Even if the operator forgets to start the recorder, its patented shadow recording ™ function guarantees data.
FlashLink ® USB-80 ° C data loggers are ideal for monitoring the transport of time- and temperature-sensitive (TATS) materials. Such as carbon fiber prepregs
Ship with dry ice to maintain their frozen state. The recorder provides a complete record of temperature conditions during transportation of expensive TATS materials, helping to ensure
We shall also inspect the quality and safety of these products.
◆ Large screen easy-to-read LCD display
◆ Historical data can be viewed on LCD
◆ Remaining battery life indicator (low battery power)
◆ One-time use
◆ USB connection
◆ NIST traceability, CE marking, BSS7061 standard
◆ IP54 waterproof grade
Download temperature data and create PDF reports with free FlashPDF software
Even if the operator forgets to start the recorder, its patented shadow recording ™ function guarantees data.
DeltaTrak-40926~40930-datasheet.pdf
Additional information
| Brand | DeltaTrak |
|---|---|
| Model | 40926-40927-40929-40930 |
| Measurement Range | -80°C to 50°C |
| Temperature Resolution | 0.1°C/F over full temperature measurement range |
| Accuracy | ±0.5°C from 0°C to 25°C |
| Data Capacity | 16,112 points |
| Data Download Time | 5 seconds typical for 3823 points |
| Factory Programmable Alarm Levels | High & Low levels over entire range, displayed on LCD |
| Battery | Single AA Lithium battery |
| Dimensions | 1.57" x 3.67" x 0.94" (40mm x 93.5 mm x 24mm) |
| Casing | PC/ABS plastic |
| Weight | 1.9 oz. (54 grams) |
| Shock Resistance | Withstands 3-foot (1 meter) drop to hard surface |
| Certification | CE Mark, NIST traceable, ROHS Compliant, |
| FAA Compliance | RTCA/DO-160 |
| Display | °C Scale on LCD, Red LED Alarm |
| IP Rating | IP54 (with silicon cap on) |
| Storage conditions | -4°F to 122°F (-20°C to 50°C) 0% to 95% RH w/o |
| Min. System Requirements | Windows PC with current operating system |
| Software/ Download Requirements | FlashPDF software #20163 (21 CFR Part 11 |
| Number | 40926, 40927, 40929, 40930 |
